• NA 250-500

  • 2 Sets
  • Q = 770 m³/h
  • H = 73 m
  • 250 kW – 1480 RPM

• NA 250-500S

  • 3 Sets
  • Q = 1226 m³/h
  • H = 73 m
  • 355 kW – 1480 RPM

• LDP-X 300-360

  • 3 Sets
  • Q = 1256.55 m³/h
  • H = 20 m
  • 110 kW – 1480 RPM

• NA 250-500

  • 2 Sets
  • Q = 928 m³/h
  • H = 83.5 m
  • 355 kW – 1480 RPM

• NAs 100-320

  • 2 Sets
  • Q = 235 m³/h
  • H = 25 m
  • 30 kW – 1480 RPM

•

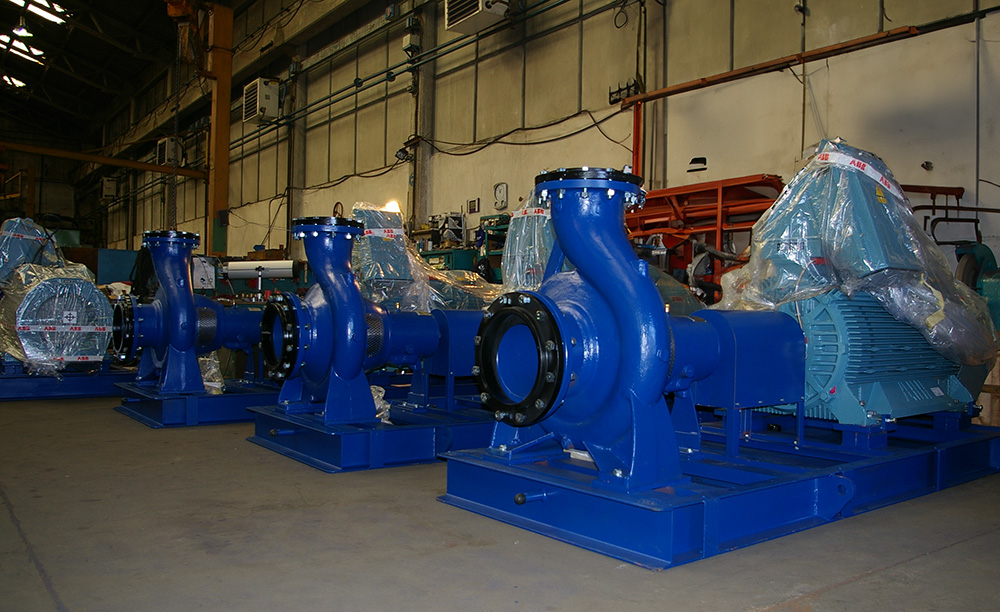

  Ldp Na 0001

•

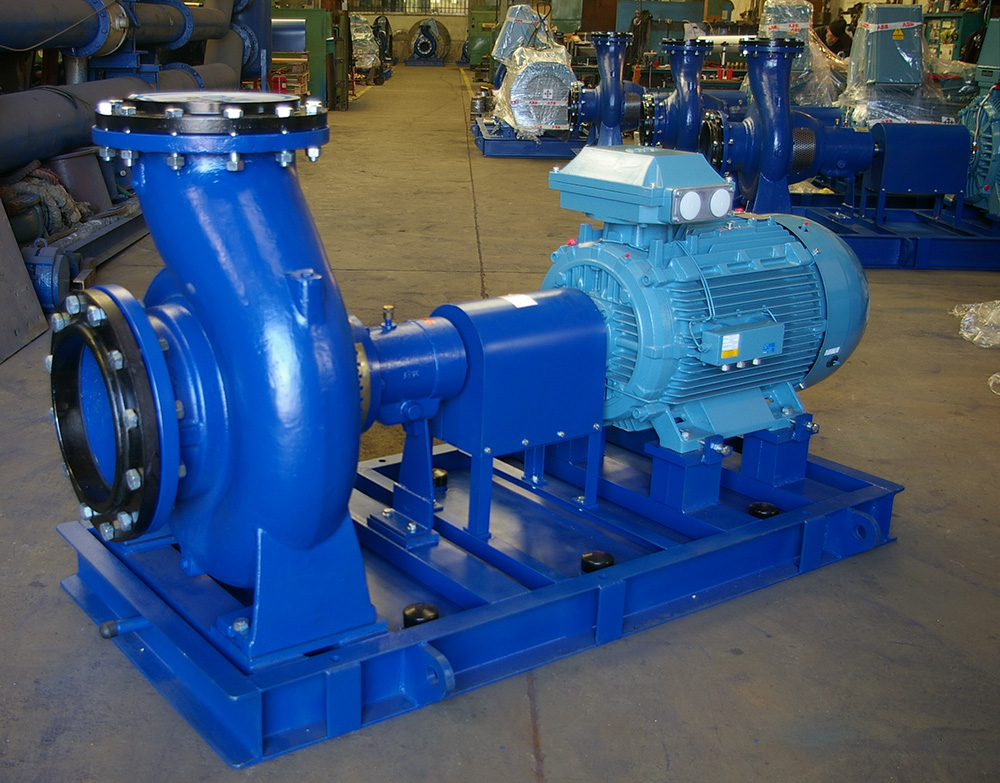

  Ldp Na 0002

•

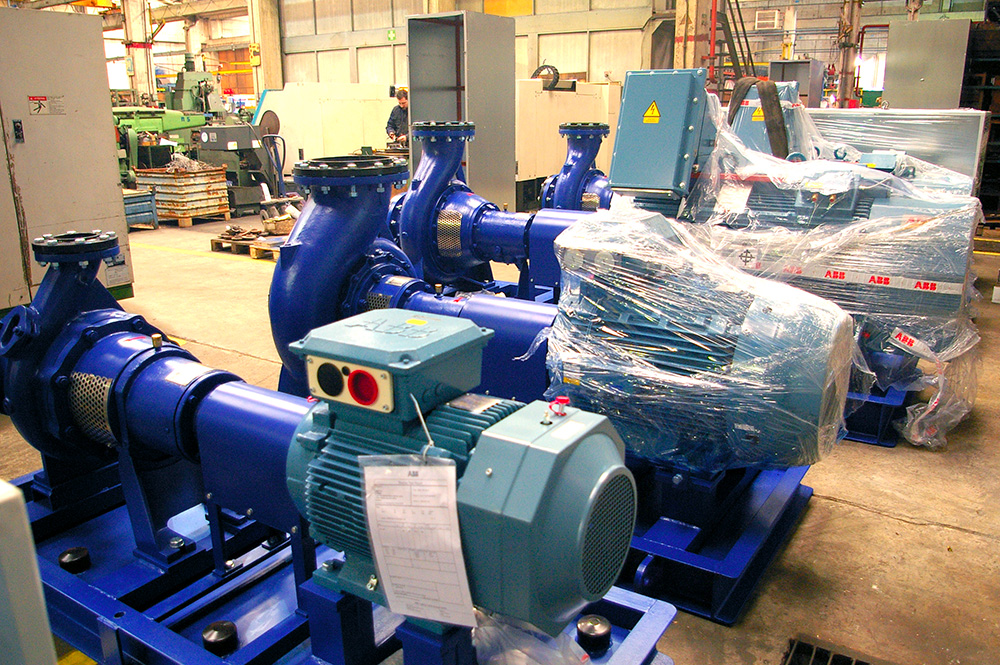

  Ldp Na 0003

•

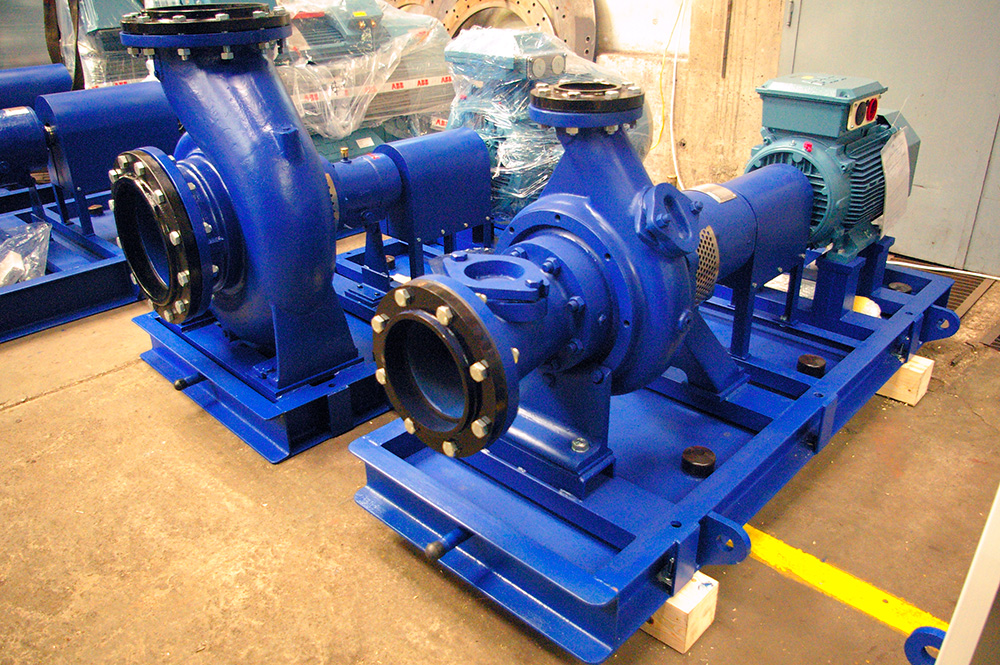

  Ldp Na 0004

RELATED PRODUCTS

View all Products

LATEST PROJECTS

LATEST NEWS

• OVERVIEW

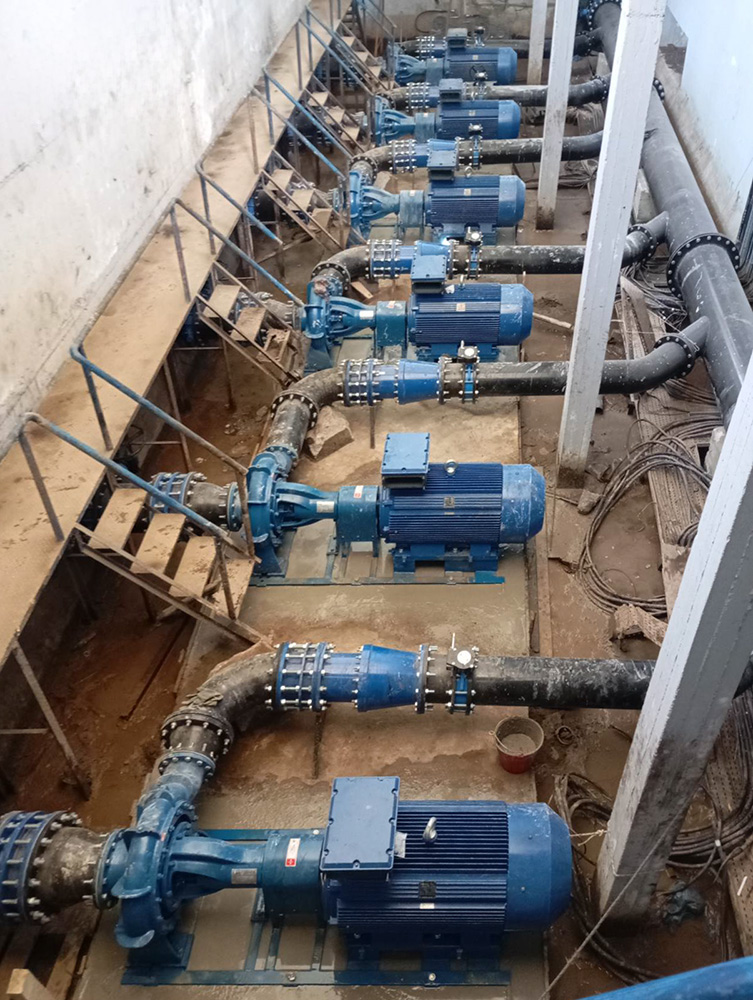

  6 sets of NA 200-560 Heavy Duty End Suction Pumps were delivered and installed at the 'Tsouknida' Pumping Station, under the Agricultural Land Improvement Authority of Acheron (ΤΟΕΒ Αχέροντα), a project commissioned by the Region of Epirus, Greece.

• NA 200-560

  • 6 Sets
  • Q = 485 m³/h
  • H = 105.5 m
  • 250 kW – 1480 RPM

•

  Na 04 25 1 W

•

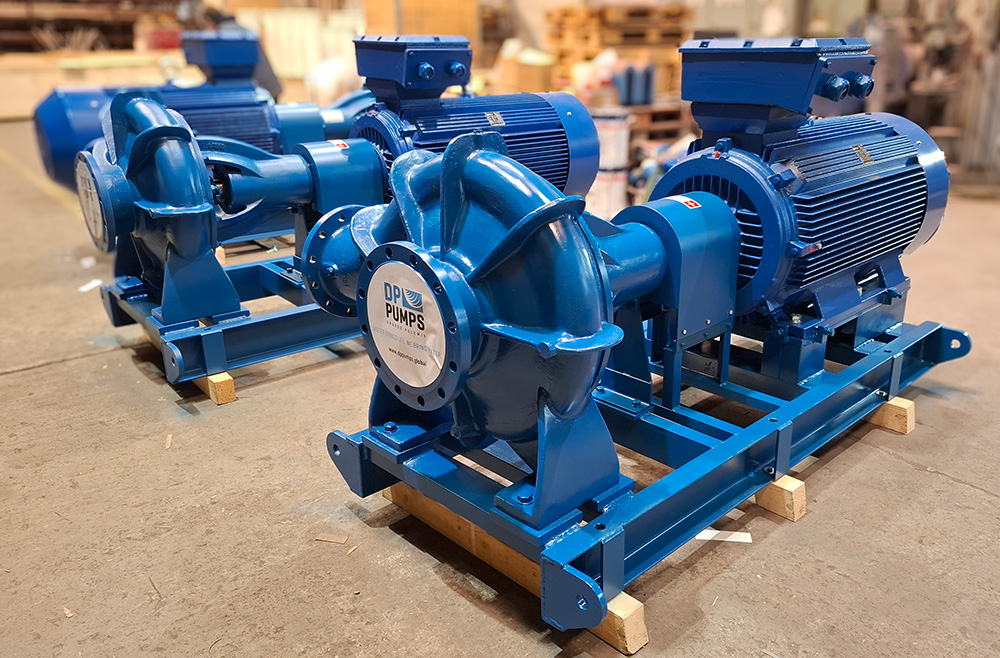

  Na 04 25 2 W

•

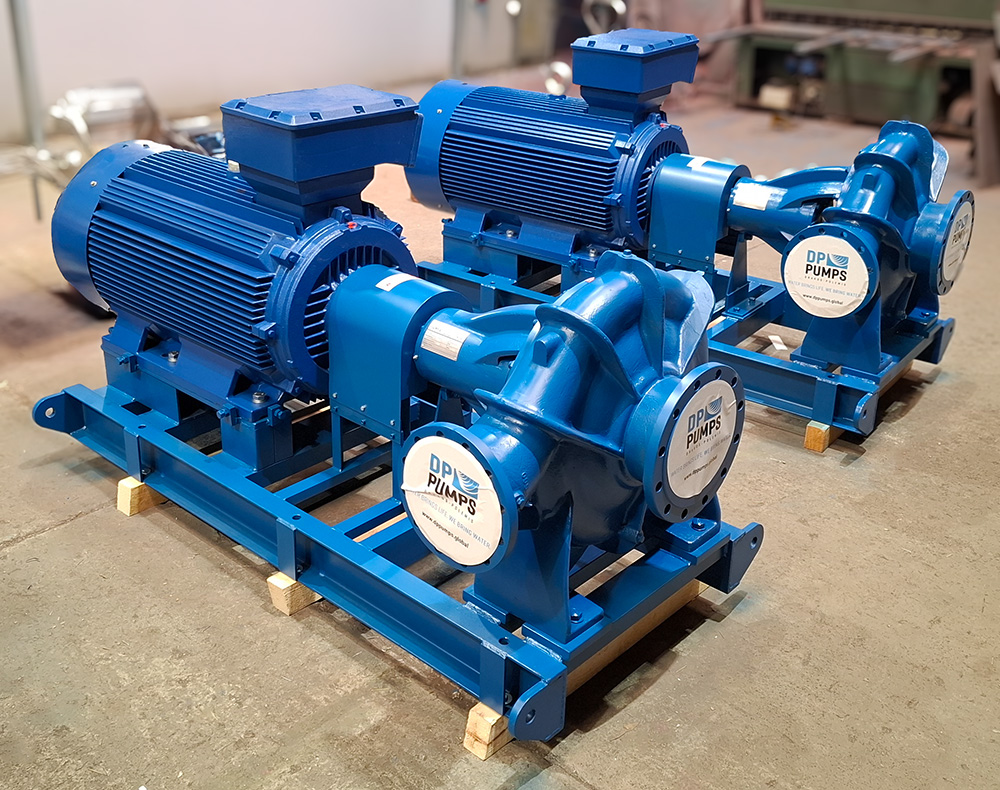

  Na 04 25 3 W

•

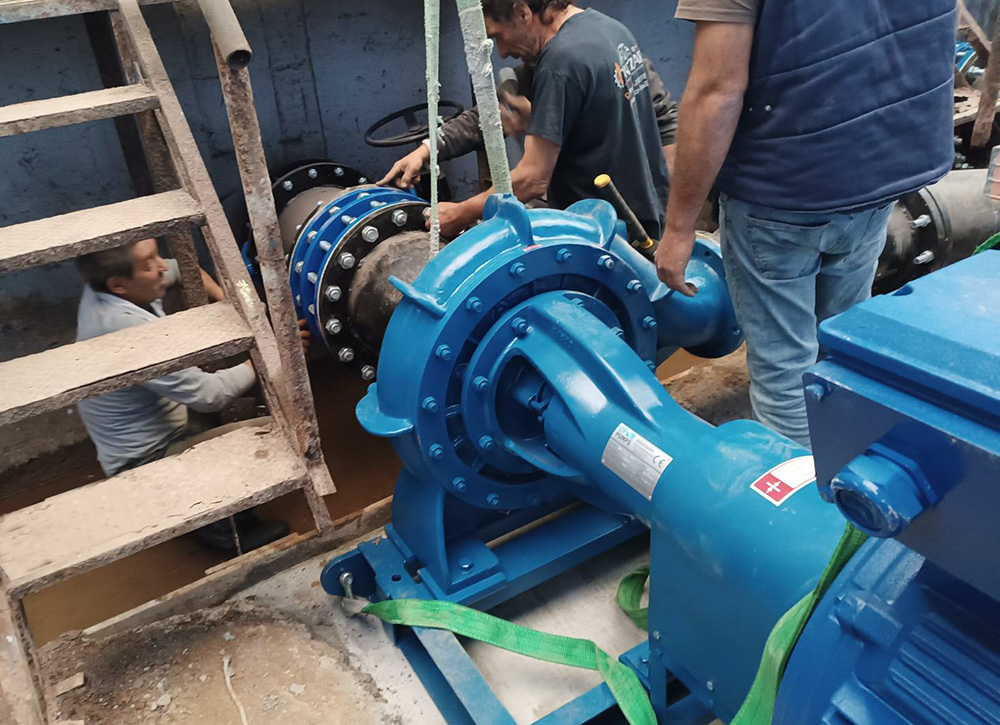

  Na 04 25 4 W

•

  Na 04 25 5 W

RELATED PRODUCTS

View all Products

ALL PRODUCTS

DP-BLOCK & IL-N

• FEATURES

  • Single stage mono-block centrifugal "IN-LINE" pump for clean water
  • Standart electric motor of mounting V1
  • Equal diameter suction - discharge on same line
  • High quality mechanical seal
  • Flanges according ISO 7005-2/PN16
  • Easy dismount without disconnecting from the main grid
  • Horizontal or vertical mounting

• APPLICATIONS

  • Industry
  • Cold / hot water
  • Air conditioning
  • Circulation
  • Marine

• HYDRAULIC DATA

  • Capacity up to 300 m³/h
  • Total head up to 90 m
  • Temperature up to 140^ο C
  • Pressure up to 10 bar

• TECHNICAL NOTES

  • Asynchronous electric motor, insulation class F , IP 55 , mounting V1 , 50/60Hz , 400/440V
  • Electric motor uppon customer specification such as IP55
  • Unit can be delivered with VFD
  • Unit can be delivered with AIR-EJECTOR

• MATERIALS

  • Casted Parts: Cast Iron, Bronze Alloys, Stainless Steel, Duplex & Super Duplex Stainless Steel
  • Fabricated Parts: Steel , stainles steel , Duplex & Super Duplex stainless steel

RELATED PROJECTS

View all Latest Projects

ALL PRODUCTS

NAx, BRATES

• FEATURES

  • Capacity up to 15000 m3/h
  • Total Head up to 40 m
  • Temperature up to 120º C
  • Available in Horizontal & Vertical Arrangement

• MATERIALS

  • Casted Parts: Cast Iron, Bronze Alloys, Stainless Steel, Duplex & Super Duplex Stainless Steel
  • Fabricated Parts: Steel , stainles steel , Duplex & Super Duplex stainless steel

RELATED PROJECTS

View all Latest Projects

ALL PRODUCTS

LDP

• FEATURES

  • Single stage end suction centrifugal pump
  • Volute type casingwith easily renewable wear rings
  • Impeller dynamically balanced according to ISO 1940 class 6.3
  • Axial suction and radial discharge.
  • Packedglandfortemperaturesupto 110^οC (standard arrangement)
  • Mechanical seal for temperatures up to 140^οC
  • Complete bearing assemblyincluding impeller and shaft seal which can be dismantled without removing the volute casing from the pipe system (back-pull-out)
  • Mounting Horizontal

• APPLICATIONS

  • Water supply
  • Industrial
  • Irrigaion
  • Cold / hot water
  • Oils
  • Cooling
  • Fire fighting systems
  • Marine–special Construction

• HYDRAULIC DATA

  • Capacity up to 550 m³/h
  • Head up to 100 m
  • Temperature up to 110^οC with packing gland and up to 140^οC mechanical seal
  • Working pressure up to 16 bar

• TECHNICAL NOTES

  • Electric motor used at units are asynchronous, F insulation Class, enclosure IP55, B3 mounting, 50Hz, 400V
  • Units can be delivered with special electric motors uppon request such as IP56 etc.
  • Units can be deliverd with VFD systems

• MATERIALS

  • Casted Parts: Cast Iron, Bronze Alloys, Stainless Steel, Duplex & Super Duplex Stainless Steel
  • Fabricated Parts: Steel , stainles steel , Duplex & Super Duplex stainless steel

RELATED PROJECTS

View all Latest Projects

ALL PRODUCTS

MDP

• FEATURES

  • Capacity up to 1600 m3/h
  • Head up to 160 m
  • Temperature up to 140º C
  • Working pressure up to 16 bar

• MATERIALS

  • Casted Parts: Cast Iron, Bronze Alloys, Stainless Steel, Duplex & Super Duplex Stainless Steel
  • Fabricated Parts: Steel , stainles steel , Duplex & Super Duplex stainless steel

RELATED PROJECTS

View all Latest Projects

ALL PRODUCTS

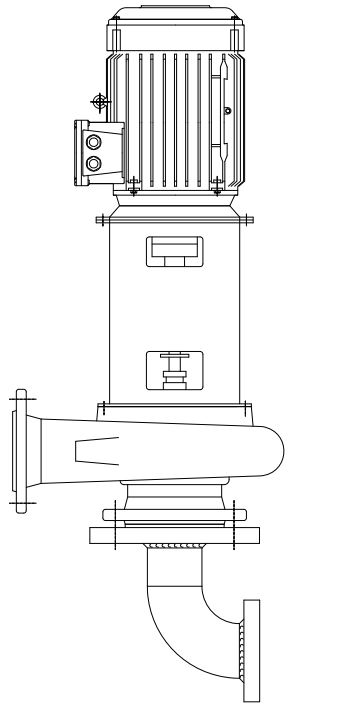

LDP, LDP-X, NA Conf. VD

• FEATURES

  • Single stage end suction centrifugal pump
  • Volute type casing with easily renewable wear rings
  • Impeller dynamically balanced according to ISO 1940 class 6.3
  • Axial suction and radial discharge or equal diameter suction - discharge on same line
  • Packed gland for temperatures up to 110 οC (standard arrangement)
  • Mechanical seal for temperatures up to 140 οC
  • Mounting vertical

• APPLICATIONS

  • Water supply
  • Industrial
  • Irrigaion
  • cold / hot water
  • Oils
  • Cooling
  • Fire fighting systems
  • Marine – special Construction
  • Air conditioning
  • Circulation

• HYDRAULIC DATA

  • Capacity up to 2500 m³/h
  • Head up to 150 m
  • Temperature up to 110^οC with packing gland and up to 140^οC mechanical seal
  • Working pressure up to 16 bar

• TECHNICAL NOTES

  • Electric motor used at units are asynchronous, F insulation Class, enclosure IP55, B3 mounting, 50Hz, 400V
  • Units can be delivered with special electric motors uppon request such as IP56 etc
  • Pumps can be delivered with AIR EJECTOR

• MATERIALS

  • Casted Parts: Cast Iron, Bronze Alloys, Stainless Steel, Duplex & Super Duplex Stainless Steel
  • Fabricated Parts: Steel , stainles steel , Duplex & Super Duplex stainless steel

RELATED PROJECTS

View all Latest Projects

ALL PRODUCTS

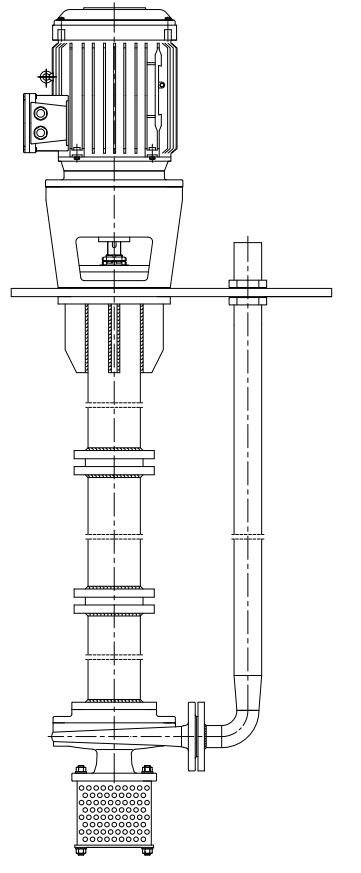

LDP, LDP-X, NA Conf. VW

• FEATURES

  • Single stage end suction centrifugal pump
  • Volute type casing with easily renewable wear rings
  • Impeller dynamically balanced according to ISO 1940 class 6.3
  • Axial suction and radial discharge
  • Packed gland for temperatures up to 110 ºC (standard arrangement)
  • Mechanical seal for temperatures up to 140 ºC
  • Mounting vertical

• APPLICATIONS

  • Water supply
  • Industrial
  • Irrigaion
  • Cold / Hot water
  • Oils
  • Cooling
  • Fire fighting systems
  • Marine – special Construction

• HYDRAULIC DATA

  • Capacity up to 1000 m³/h
  • Head up to 100 m
  • Temperature up to 110º C with packing gland and up to 140ºC mechanical seal
  • Axial suction and radial discharge
  • Working pressure up to 16 bar

• TECHNICAL NOTES

  • Electric motor used at units are asynchronous, F insulation Class, enclosure IP55, B3 mounting, 50Hz, 400V
  • Units can be delivered with special electric motors uppon request such as IP56 etc

• MATERIALS

  • Casted Parts: Cast Iron, Bronze Alloys, Stainless Steel, Duplex & Super Duplex Stainless Steel
  • Fabricated Parts: Steel , stainles steel , Duplex & Super Duplex stainless steel

RELATED PROJECTS

View all Latest Projects

ALL PRODUCTS

NA

• FEATURES

  • Heavy construction
  • Casing of the volute type fitted with easily renewable casing wearing rings
  • Suction volute design with vertically arranged radial discharge branch
  • Sealing with packed gland up to 110°C or mechanical seal up to 140°C
  • Easy removable  without disconnecting suction or delivery pipe work(back-pull-out system )
  • Horizontal arrangement
  • Closed or open impeller dynamically balanced acc to ISO 1940 class G 6.3
  • Heavy duty oil ball bearings in overhung housing flanged to pump casing

• APPLICATIONS

  • Water Supply
  • Industry
  • Agricultural
  • Public purposes
  • Irrigation and drainage
  • Booster Stations
  • Water process
  • Circulation
  • Marine– Special construction
  • Sea water
  • Drinking water
  • Condensate

• HYDRAULIC DATA

  • Capacity up to 2500 m³/h
  • Total head up to 150 m
  • Temperature - 30^οC to +140^οC
  • Pressure up to 16 bar

• TECHNICAL NOTES

  • Electric motors used for NA units are acc to ENIEC, 3 Phs , asynchronous , insulation class F,IP55,frequency 50Hz , voltage 400V also available with 60Ηz / 440 V
  • Na units can be delivered with VFDs (INVERTER)

• MATERIALS

  • Casted Parts: Cast Iron, Bronze Alloys, Stainless Steel, Duplex & Super Duplex Stainless Steel
  • Fabricated Parts: Steel , stainles steel , Duplex & Super Duplex stainless steel

RELATED PROJECTS

View all Latest Projects

ALL PRODUCTS

LDP-X

• FEATURES

  • Single stage end suction centrifugal pump oversized
  • Volute type casing with easily renewable wear rings
  • Impeller dynamically balanced according to ISO 1940 class 6.3
  • Axial suction and radial discharge.
  • Packedglandfortemperaturesupto 110^οC (standard arrangement)
  • Mechanical seal for temperatures up to 140 οC
  • Complete bearing assembly including impeller and shaft seal which can be dismantled without removing the volute casing from the pipe system (back-pull-out)
  • Suction and dicharge flanges 10/16 bars, according to DIN2501, EN 1092-2

• APPLICATIONS

  • Water supply
  • Industrial
  • Irrigaion
  • Cold / hot water
  • Oils
  • Cooling
  • Fire fighting systems
  • Marine– special Construction

• HYDRAULIC DATA

  • Capacity up to 1500 m³/h
  • Head up to 150 m
  • Temperature up to 110^οC with packing gland and up to 140^οC mechanical seal
  • Working pressure up to 16 bar

• TECHNICAL NOTES

  • Electric motor used at units are asynchronous, F insulation Class, enclosure IP55, B3 mounting, 50Hz, 400V
  • Units can be delivered with special electric motors uppon request such as IP56 etc.
  • Units can be deliverd with VFD system

• MATERIALS

  • Casted Parts: Cast Iron, Bronze Alloys, Stainless Steel, Duplex & Super Duplex Stainless Steel
  • Fabricated Parts: Steel , stainles steel , Duplex & Super Duplex stainless steel

RELATED PROJECTS

View all Latest Projects

ALL PRODUCTS

TA, CM, NPM, TERMA, RDT

• FEATURES

  • Capacity up to 2000 m3/h
  • Total Head up to 250 m
  • Max. Working Pressure 50 bar
  • Heavy Duty design, acc API-610 latest edition
    available (OH-1 type)

• MATERIALS

  • Casted Parts: Cast Iron, Bronze Alloys, Stainless Steel, Duplex & Super Duplex Stainless Steel
  • Fabricated Parts: Steel , stainles steel , Duplex & Super Duplex stainless steel
